SUPRESOR 40KA 3P 240 VAC

Descripción

Ultima actualización enero 14th, 2026 at 08:45 pm

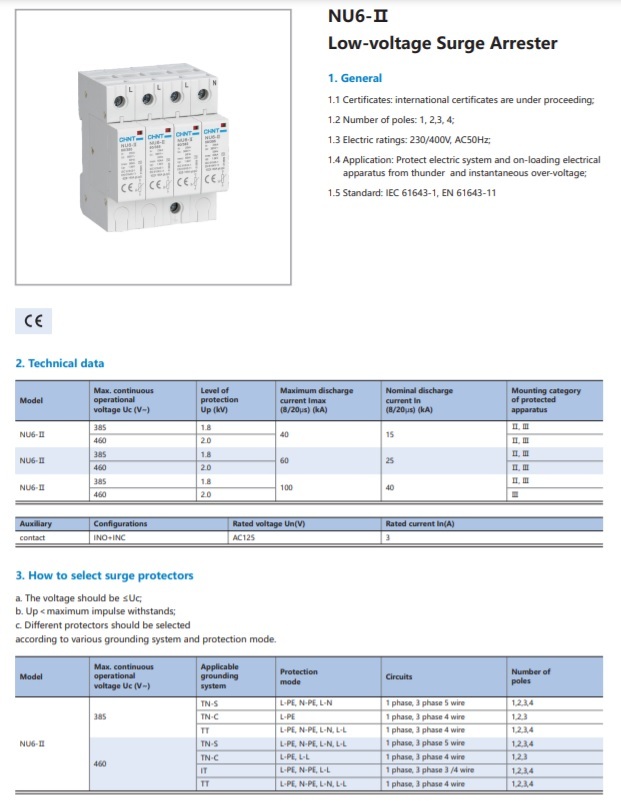

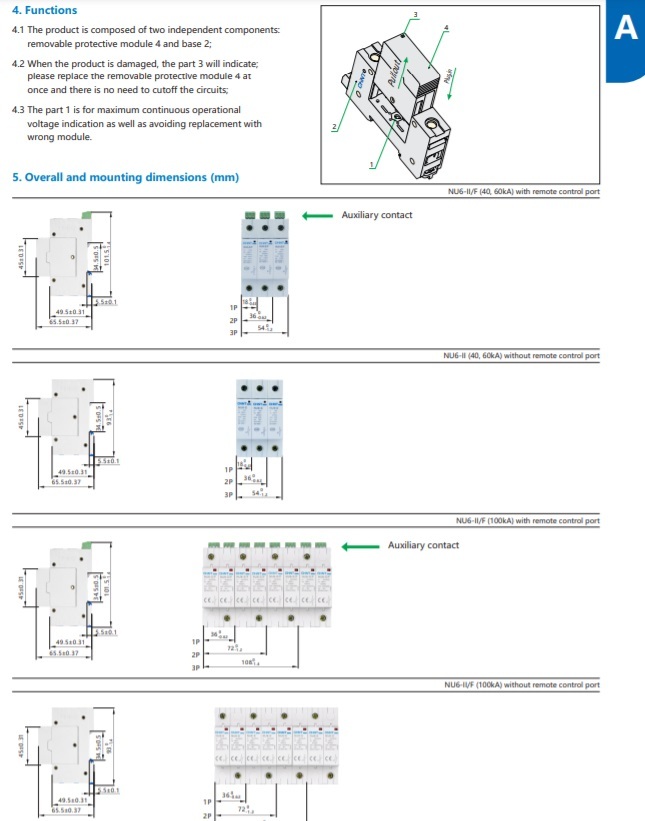

NU6-II
Application:	                        surge arrester with exchangeable cartridge
Signalization:	                        local indicator
                                                remote – on demend (F) 1NO/NC
Poles:				        1, 2,
Net nominal voltage:	        230 / 400V AC
Max. cont. oper. voltage Uc:	385, 460V AC
Level of protection:		        1,8, 2kV
Max. discharge current:	        40, 60, 100kA at 8/20s wave
Nominal discharge current:	15, 25, 40kA	at 8/20s wave
Classification:			        Type 2, Class II, Class C

Standard: IEC/EN 61643-1
