Descripción

Ultima actualización agosto 11th, 2026 at 03:38 pm

Especificaciones Técnicas

Entrada DC (Panel Solar / FV)

Tensión de operación MPPT: Vmp >310V DC (mínimo recomendado)
Tensión máxima en circuito abierto: Voc <450V DC
Algoritmo MPPT de alta precisión integrado
Compatible con paneles policristalinos y monocristalinos

Paneles FV recomendados (referencia)

Potencia mínima de paneles: 2.2 kW × 1.3 = ≥2.86 kW en paneles
Ejemplo: paneles de 300W → mínimo 10 paneles en configuración serie/paralelo

Entrada AC (Red / Generador — Respaldo Híbrido)

Tensión nominal AC: Monofásico 220V (±10%) → Rango: 198–242V
Frecuencia: 50 Hz / 60 Hz
Conmutación automática entre fuente DC (solar) y fuente AC (red)

Salida

Potencia nominal: 2.2 kW (3 HP)
Tensión de salida: Monofásica 0–220V variable
Corriente nominal de salida: ~13 A
Frecuencia de salida: 0–400 Hz
Velocidad de motor ajustada automáticamente según radiación solar disponible

Control

MPPT integrado: rastreo dinámico del punto de máxima potencia
Arranque suave automático (protege bomba y motor)
Modo hibernación/sueño: detiene la bomba cuando la radiación es insuficiente, rearranea automáticamente al recuperarse
Control PID para presión o nivel constante

Protecciones

Marcha en seco (dry run): detección y paro automático
Sobrecarga de motor: 150% / 1 min
Sobretensión y subtensión (DC y AC)
Sobretemperatura del inversor
Cortocircuito en salida
Control de nivel de depósito/cisterna (con sensor externo)

Funciones para Bombeo Solar

Operación híbrida: prioridad solar, red como respaldo automático
LED/Display: monitoreo en tiempo real de potencia solar, frecuencia, corriente y estado
Comunicación RS485 (Modbus RTU) para monitoreo remoto
Compatible con sensor de nivel de agua y sensor de presión
Conteo de horas de operación
Sin mantenimiento adicional: diseño plug & pump

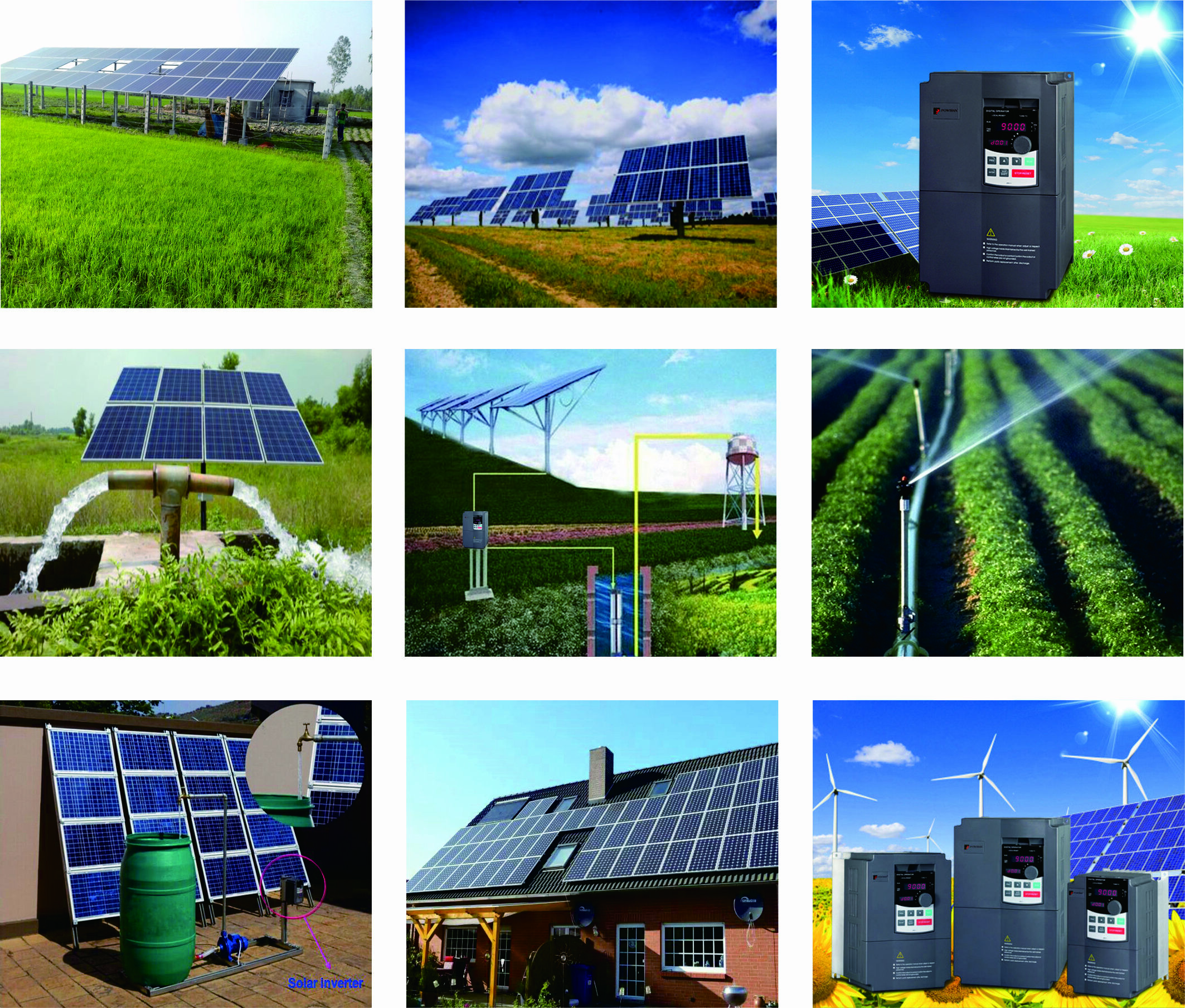

Aplicaciones recomendadas

Bombas sumergibles monofásicas (pozo somero y medio)
Bombas centrífugas superficiales monofásicas
Sistemas de riego doméstico y pequeño agrícola
Agua potable en viviendas, fincas y comunidades rurales
Sistemas sin acceso a red eléctrica

Condiciones ambientales

Temperatura de operación: -10°C a +40°C
Altitud: hasta 1,000 m s.n.m.
Humedad relativa: ≤95% sin condensación
Grado de protección: IP20

Certificaciones: CE

El inversor especial para bomba de agua fotovoltaica puede admitir entrada de CA además de admitir la entrada de CC de matriz fotovoltaica. Cuando la matriz fotovoltaica no puede impulsar el motor o no tiene salida, también puede aceptar la entrada de CA de la red u otro motor de CA para suministrar la energía para satisfacer diversas necesidades de emergencia. El inversor de la serie PI9000-S especial para bomba de agua fotovoltaica proporciona protección completa, maximizando la vida útil del motor y la bomba.

Items	Function			Specifications
Power	Voltage and frequency levels			Single-phase 220V±10%，50/60Hz±5% Three-phase 220V±10%，50/60Hz±5% Three-phase 380V±10%，50/60Hz±5%
	Recommend pv input DC voltage range			G1/G2：DC 200～440V； G3：DC 350～780V
Control system	Control system			High performance vector control inverter based on DSP
	Control method			V/F control, vector control W/O PG
	Automatic torque boost function			Realize low frequency (1Hz) and large output torque control under the V/F control mode.
	Acceleration/deceleration control			Straight or S-curve mode. Four times available and time range is 0.0 to 6500.0s.
	V/F curve mode			Linear, square root/m-th power, custom V/F curve
	Over load capability			G type:rated current 150% – 1 minute, rated current 180% – 2 seconds
	Maximum frequency			Vector control:0 to 300Hz; V/F control:0 to 3200Hz
	Carrier Frequency			0.5 to 16kHz; automatically adjust carrier frequency according to the load characteristics.
	Input frequency resolution			Digital setting: 0.01Hz Analog setting: maximum frequency×0.1%
	Start torque			G type: 0.5Hz/150% (vector control W/O PG)
	Speed range			1:100 (vector control W/O PG)
	Steady-speed precision			Vector control W/O PG: ≤ ± 0.5% (rated synchronous speed)
	Torque response			≤ 40ms (vector control W/O PG)
	Torque boost			Automatic torque boost; manual torque boost(0.1% to 30.0%)
	DC braking			DC braking frequency: 0.0Hz to max. frequency, braking time: 0.0 to 100.0 seconds, braking current value: 0.0% to 100.0%
	Jogging control			Jog Frequency Range: 0.00Hz to max. frequency; Jog Ac/deceleration time: 0.0s to 6500.0s
	Multi-speed operation			Achieve up to 16-speed operation through the control terminal
	Built-in PID			Easy to realize closed-loop control system for the process control.
	Automatic voltage regulation(AVR)			Automatically maintain a constant output voltage when the voltage of electricity grid changes
	The specific function of solar pump inveter			the biggest Optical power tracking,Light weak auto sleep,Light intensity automatically wake up,High water level automatic stop,Low water level automatic run,under load protection.
Peronalization function	Self-inspection of peripherals after power-on			After powering on, peripheral equipment will perform safety testing, such as ground, short circuit, etc.
	Common DC bus function			Multiple inverters can use a common DC bus.
	Quick current limiting			The current limiting algorithm is used to reduce the inverter overcurrent probability, and improve whole unit anti-interference capability.
	Timing control			Timing control function: time setting range(0m to 6500m)
Running	Input signal	Running method		Keyboard/terminal/communication
		Frequency setting		10 frequency settings available, including adjustable DC(0 to 10V), adjustable DC(0 to 20mA), panel potentiometer, etc.
		Start signal		Rotate forward/reverse
		Multi-speed		At most 16-speed can be set(run by using the multi-function terminals or program)
		Emergency stop		Interrupt controller output
		Fault reset		When the protection function is active, you can automatically or manually reset the fault condition.
		PID feedback signal		Including DC(0 to 10V), DC(0 to 20mA)
	Output signal	Running status		Motor status display, stop, ac/deceleration, constant speed, program running status.
		Fault output		Contact capacity :normally closed contact 3A/AC 250V，normally open contact 5A/AC 250V，1A/DC 30V.
		Analog output		Two-way analog output, 16 signals can be selected such as frequency, current, voltage and other, output signal range (0 to 10V / 0 to 20mA).
		Output signal		At most 3-way output, there are 40 signals each way
	Run function			Limit frequency, jump frequency, frequency compensation, auto-tuning, PID control
	DC current braking			Built-in PID regulates braking current to ensure sufficient braking torque under no overcurrent condition.
	Running command channel			Three channels: operation panel, control terminals and serial communication port. They can be switched through a variety of ways.
	Frequency source			Total 11 frequency sources: digital, analog voltage,multi-speed and serial port. They can be switched through a variety of ways.
	Input terminals			6 digital input terminals, compatible with active PNP or NPN input mode, one of them can be for high-speed pulse input(0 to 100 kHz square wave); 3 analog input terminals AI1and AI2 of them can be for 0-10V or 0-20mA input,and AI3 can be for -10V to +10V input.
	Output terminals			2 digital output terminals, one of them can be for high-speed pulse output(0 to 100kHz square wave); TWO relay output terminal; 2 analog output terminals respectively for optional range (0 to 20mA or 0 to 10V), they can be used to set frequency, output frequency, speed and other physical parameters.
Protection function	Inverter protection			Overvoltage protection, undervoltage protection, overcurrent protection, overload protection, overheat protection, overcurrent stall protection, overvoltage stall protection, losting-phase protection (optional), communication error, PID feedback signal abnormalities, and short circuit to ground protection.
	IGBT temperature display			Displays current temperature IGBT
	Inverter fan control			Can be set
	Instantaneous power-down restart			Less than 15 milliseconds: continuous operation. More than 15 milliseconds: automatic detection of motor speed, instantaneous power-down restart.
	Speed start tracking method			The inverter automatically tracks motor speed after it starts
	Parameter protection function			Protect inverter parameters by setting administrator Password and decoding
Display	LED/OLED display keyboard		Running information	Monitoring objects including: running frequency, set frequency, bus voltage, output voltage, output current, output power, output torque, input terminal status, output terminal status, analog AI1 value, analog AI2 value, motor Actual running speed，PID set value percentage, PID feedback value percentage.
			Error message	At most save three error message, and the time, type, voltage, current, frequency and work status can be queried when the failure is occurred.
	LED display			Display parameters
	OLED display			Optional, prompts operation content in Chinese/English text.
	Copy parameter			Can upload and download function code information of frequency converter, rapid replication parameters.
	Key lock and function selection			Lock part or all of keys, define the function scope of some keys to prevent misuse.
Communication	RS485			The optional completely isolated RS485 communication module can communicate with the host computer. 9KRSCB.V5 version and above built-in 485 communication module
Environment	Environment temperature			-10 ℃ to 40 ℃ (temperature at 40 ℃ to 50 ℃, please derating for use)
	Storage temperature			-20 ℃ to 65 ℃
	Environment humidity			Less than 90% R.H, no condensation.
	Vibration			Below 5.9m/s² (= 0.6g)
	Application sites			Indoor where no sunlight or corrosive, explosive gas and water vapor, dust, flammable gas, oil mist, water vapor, drip or salt, etc.
	Altitude			Below 1000m
	Pollution degree			2
Product standard	Product adopts safety standards.			IEC61800-5-1:2007
	Product adopts EMC standards.			IEC61800-3:2005
Cooling method				Forced air cooling

Vendido

Haga Click para agrandar

Volver a los productos

VARIADOR P/BOMBA SOLAR 3HP 220V 1F PI500A-S2R2G1

Name: VARIADOR P/BOMBA SOLAR 3HP 220V 1F PI500A-S2R2G1
SKU: VAFR-013
Availability: OutOfStock

Q2,738.89

Sin existencias

Comparar

Añadir a lista de deseos

SKU: VAFR-013 Categoría: Variadores de Frecuencia Powtran Etiqueta: PI500A-S2R2G1

Items	Function			Specifications
Power	Voltage and frequency levels			Single-phase 220V±10%，50/60Hz±5% Three-phase 220V±10%，50/60Hz±5% Three-phase 380V±10%，50/60Hz±5%
	Recommend pv input DC voltage range			G1/G2：DC 200～440V； G3：DC 350～780V
Control system	Control system			High performance vector control inverter based on DSP
	Control method			V/F control, vector control W/O PG
	Automatic torque boost function			Realize low frequency (1Hz) and large output torque control under the V/F control mode.
	Acceleration/deceleration control			Straight or S-curve mode. Four times available and time range is 0.0 to 6500.0s.
	V/F curve mode			Linear, square root/m-th power, custom V/F curve
	Over load capability			G type:rated current 150% – 1 minute, rated current 180% – 2 seconds
	Maximum frequency			Vector control:0 to 300Hz; V/F control:0 to 3200Hz
	Carrier Frequency			0.5 to 16kHz; automatically adjust carrier frequency according to the load characteristics.
	Input frequency resolution			Digital setting: 0.01Hz Analog setting: maximum frequency×0.1%
	Start torque			G type: 0.5Hz/150% (vector control W/O PG)
	Speed range			1:100 (vector control W/O PG)
	Steady-speed precision			Vector control W/O PG: ≤ ± 0.5% (rated synchronous speed)
	Torque response			≤ 40ms (vector control W/O PG)
	Torque boost			Automatic torque boost; manual torque boost(0.1% to 30.0%)
	DC braking			DC braking frequency: 0.0Hz to max. frequency, braking time: 0.0 to 100.0 seconds, braking current value: 0.0% to 100.0%
	Jogging control			Jog Frequency Range: 0.00Hz to max. frequency; Jog Ac/deceleration time: 0.0s to 6500.0s
	Multi-speed operation			Achieve up to 16-speed operation through the control terminal
	Built-in PID			Easy to realize closed-loop control system for the process control.
	Automatic voltage regulation(AVR)			Automatically maintain a constant output voltage when the voltage of electricity grid changes
	The specific function of solar pump inveter			the biggest Optical power tracking,Light weak auto sleep,Light intensity automatically wake up,High water level automatic stop,Low water level automatic run,under load protection.
Peronalization function	Self-inspection of peripherals after power-on			After powering on, peripheral equipment will perform safety testing, such as ground, short circuit, etc.
	Common DC bus function			Multiple inverters can use a common DC bus.
	Quick current limiting			The current limiting algorithm is used to reduce the inverter overcurrent probability, and improve whole unit anti-interference capability.
	Timing control			Timing control function: time setting range(0m to 6500m)
Running	Input signal	Running method		Keyboard/terminal/communication
		Frequency setting		10 frequency settings available, including adjustable DC(0 to 10V), adjustable DC(0 to 20mA), panel potentiometer, etc.
		Start signal		Rotate forward/reverse
		Multi-speed		At most 16-speed can be set(run by using the multi-function terminals or program)
		Emergency stop		Interrupt controller output
		Fault reset		When the protection function is active, you can automatically or manually reset the fault condition.
		PID feedback signal		Including DC(0 to 10V), DC(0 to 20mA)
	Output signal	Running status		Motor status display, stop, ac/deceleration, constant speed, program running status.
		Fault output		Contact capacity :normally closed contact 3A/AC 250V，normally open contact 5A/AC 250V，1A/DC 30V.
		Analog output		Two-way analog output, 16 signals can be selected such as frequency, current, voltage and other, output signal range (0 to 10V / 0 to 20mA).
		Output signal		At most 3-way output, there are 40 signals each way
	Run function			Limit frequency, jump frequency, frequency compensation, auto-tuning, PID control
	DC current braking			Built-in PID regulates braking current to ensure sufficient braking torque under no overcurrent condition.
	Running command channel			Three channels: operation panel, control terminals and serial communication port. They can be switched through a variety of ways.
	Frequency source			Total 11 frequency sources: digital, analog voltage,multi-speed and serial port. They can be switched through a variety of ways.
	Input terminals			6 digital input terminals, compatible with active PNP or NPN input mode, one of them can be for high-speed pulse input(0 to 100 kHz square wave); 3 analog input terminals AI1and AI2 of them can be for 0-10V or 0-20mA input,and AI3 can be for -10V to +10V input.
	Output terminals			2 digital output terminals, one of them can be for high-speed pulse output(0 to 100kHz square wave); TWO relay output terminal; 2 analog output terminals respectively for optional range (0 to 20mA or 0 to 10V), they can be used to set frequency, output frequency, speed and other physical parameters.
Protection function	Inverter protection			Overvoltage protection, undervoltage protection, overcurrent protection, overload protection, overheat protection, overcurrent stall protection, overvoltage stall protection, losting-phase protection (optional), communication error, PID feedback signal abnormalities, and short circuit to ground protection.
	IGBT temperature display			Displays current temperature IGBT
	Inverter fan control			Can be set
	Instantaneous power-down restart			Less than 15 milliseconds: continuous operation. More than 15 milliseconds: automatic detection of motor speed, instantaneous power-down restart.
	Speed start tracking method			The inverter automatically tracks motor speed after it starts
	Parameter protection function			Protect inverter parameters by setting administrator Password and decoding
Display	LED/OLED display keyboard		Running information	Monitoring objects including: running frequency, set frequency, bus voltage, output voltage, output current, output power, output torque, input terminal status, output terminal status, analog AI1 value, analog AI2 value, motor Actual running speed，PID set value percentage, PID feedback value percentage.
			Error message	At most save three error message, and the time, type, voltage, current, frequency and work status can be queried when the failure is occurred.
	LED display			Display parameters
	OLED display			Optional, prompts operation content in Chinese/English text.
	Copy parameter			Can upload and download function code information of frequency converter, rapid replication parameters.
	Key lock and function selection			Lock part or all of keys, define the function scope of some keys to prevent misuse.
Communication	RS485			The optional completely isolated RS485 communication module can communicate with the host computer. 9KRSCB.V5 version and above built-in 485 communication module
Environment	Environment temperature			-10 ℃ to 40 ℃ (temperature at 40 ℃ to 50 ℃, please derating for use)
	Storage temperature			-20 ℃ to 65 ℃
	Environment humidity			Less than 90% R.H, no condensation.
	Vibration			Below 5.9m/s² (= 0.6g)
	Application sites			Indoor where no sunlight or corrosive, explosive gas and water vapor, dust, flammable gas, oil mist, water vapor, drip or salt, etc.
	Altitude			Below 1000m
	Pollution degree			2
Product standard	Product adopts safety standards.			IEC61800-5-1:2007
	Product adopts EMC standards.			IEC61800-3:2005
Cooling method				Forced air cooling

Marca

Powtran

Valoraciones (0)

Valoraciones

No hay valoraciones aún.

Sé el primero en valorar “VARIADOR P/BOMBA SOLAR 3HP 220V 1F PI500A-S2R2G1”

Entregas y envios

Envios a toda la republica de Guatemala

Envios gratis en pedidos mayores de Q500 a toda la republica de Guatemala. (Aplican restricciones)

Transportes que utilizamos

Guatex: Con la Mayor Cobertura. Para nadie es un secreto la importancia que tiene el conseguir una empresa de envíos que cuente con la mayor cobertura a nivel naciona
Cargo Expresso: Servicio Estándard. Entregamos su envio en el transcurso del siguiente dia hábil, para envios interdepartamentales la entrega se hace en el segundo dia hábil.
Mensajeros y transporte interno según necesidad.

VARIADOR P/BOMBA SOLAR 3HP 220V 1F PI500A-S2R2G1

Descripción

Especificaciones Técnicas

Marca

Powtran

Valoraciones

Envios a toda la republica de Guatemala

Transportes que utilizamos

VARIADOR DE FRECUENCIA 15HP 240V 3PH PI500-011G2 PLASTICO

VARIADOR DE FRECUENCIA PI500-7R5G3 – 10HP 380V 3PH»

VARIADOR P/BOMBA SOLAR 20HP 480V 3F PI570-S 015G4

VARIADOR DE FRECUENCIA 30HP 240V 1PH

VARIADOR DE FRECUENCIA 40HP 480V 3PH

VARIADOR P/BOMBA SOLAR 7.5HP 480V 3F PI570-S 5R5G4

VARIADOR DE FRECUENCIA 20HP 240V 1PH PI500-015G1

VARIADOR DE FRECUENCIA 50HP 480V 3PH

VARIADOR P/BOMBA SOLAR 3HP 220V 1F PI500A-S2R2G1

Descripción

Especificaciones Técnicas

Marca

Powtran

Valoraciones

Envios a toda la republica de Guatemala

Transportes que utilizamos

Productos relacionados
